• Socket Intel® LGA 1700: Listo para procesadores Intel® de 12a Gen.

 • Conectividad ultrarrápida: Puertos PCIe 4.0, tres puertos M.2, Realtek 2.5Gb Ethernet y Thunderbolt™ 4.

 • Refrigeración completa: Disipador de calor VRM, disipador de calor M.2, disipador de calor PCH, puertos de ventilador híbridos y Fan Xpert 2+.

 • ASUS OptiMem: Enrutamiento cuidadoso de trazas y vías para preservar la integridad de la señal para mejorar la estabilidad de la memoria.

Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® de 12.ª generación. Con un diseño de alimentación robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, la Prime H670 ofrece a los usuarios y a los constructores de PC una gama de opciones de ajuste de rendimiento a través de funciones intuitivas de software y firmware.

Los controles exhaustivos son la base de la serie ASUS Prime. La placa base Prime H670 incluye herramientas flexibles para ajustar cada aspecto de tu sistema, lo que permite modificar el rendimiento para que se adapte perfectamente a tu forma de trabajar y maximizar la productividad.

Modelo: PRIME H670-PLUS D4

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset: H670 Intel® H670 Chipset

4 DDR4 (Dual channel)

4 x DIMM, Max. 128GB, DDR4

5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*"

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

1 x HDMI 2.1

1 x DisplayPort**

1 x HDMI® port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' resolution.

1 x PCIe 4.0 x16 slot

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in support site.

** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

ASUS LANGuard

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

M.2 slot only (Key E, CNVi & PCIe)*

*Wi-Fi module is sold separately.

USB trasero: Total 8 ports

1 x USB 3.2 Gen 2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

USB frontal: Total 7 ports

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

1 x USB 2.0 header supports additional 1 USB 2.0 port

Codec de audio Realtek

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

- Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

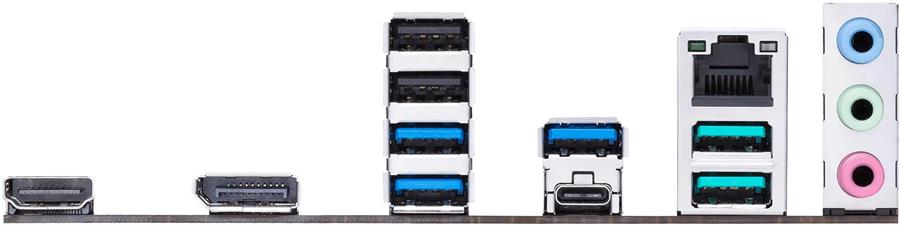

1 x USB 3.2 Gen 2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

1 x USB 2.0 header supports additional 1 USB 2.0 port

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

- DIGI+ VRM

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

- M.2 heatsink

- VRM heatsink design

- AURA RGB headers

- Addressable Gen 2 headers

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 2+

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manejabilidad: WOL by PME, PXE

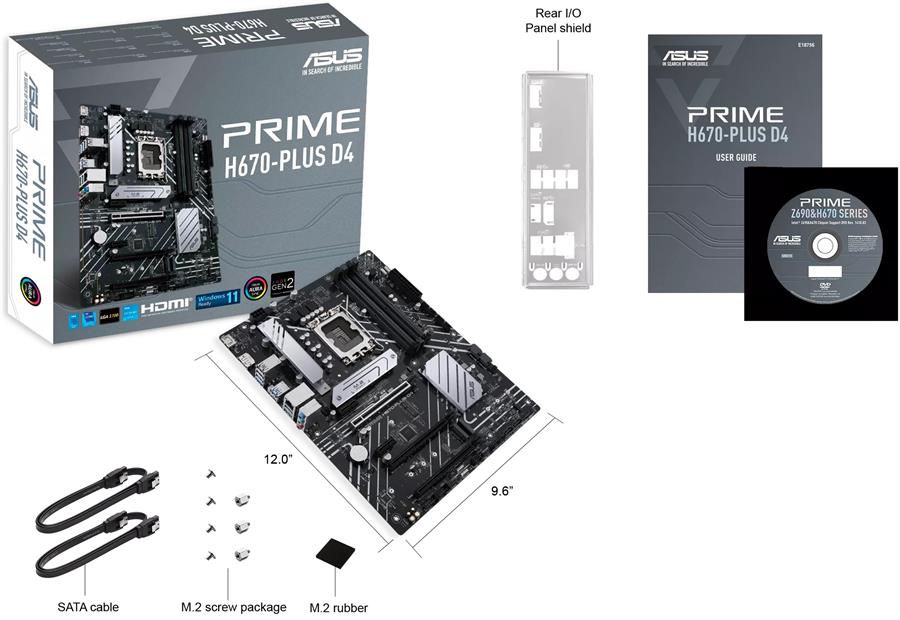

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

2 x M.2 SSD screw packages

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x User guide

Windows® 11 64-bit

Windows® 10 64-bit

Factor de forma: ATX 30,5 cm × 24,4 cm
